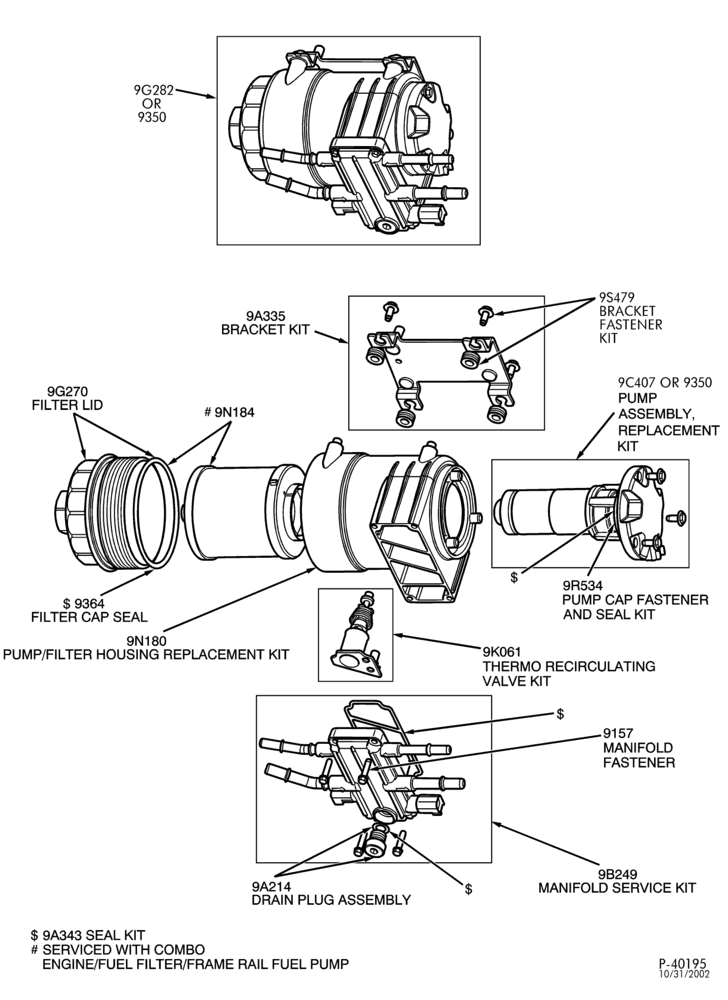

8 CYL. 6.0L - DIESEL-Fuel pump & repair kits - frame rail mounted

KIT-GASKET & MOUNTING SCREWS. ALSO SERVICED IN 9B249 MANIFOLD & 9G282 FRAME RAIL MOUNTED FUEL PUMP. GASKET ALSO SERVICED IN 9A343 GASKET KIT

INCL. SVC. PIGTAIL HARNESS 9A350(MTG NUTS N804495-S100 & N807585-S100). MTG BRKT IS 9346. REPLACE THE MTG NUTS W520202-S309 WHEN REPLACING THE PUMP(SECURES 9C407/9346 TO THE FRAME).

KIT-INTERNAL FUEL PUMP & MOUNTING SCREWS(FRAME RAIL MOUNTED). INCLUDES 9R534 KIT-COVER O'RING & MOUNTING SCREWS. ALSO SERVICED IN 9G282 COMPLETE PUMP ASSEMBLY WITH FUEL FILTER

MIDSHIP, 38 GAL., 70 MICRON PUMP ELEMENT

MIDSHIP, 29 GAL., 70 MICRON PUMP ELEMENT

MIDSHIP, 29 GAL., 70 MICRON PUMP ELEMENT

MIDSHIP FUEL TANK

MIDSHIP FUEL TANK

MIDSHIP, 19 GAL., 70 MICRON PUMP ELEMENT

MIDSHIP, 19 GAL., 70 MICRON PUMP ELEMENT

AFT AXLE, 40 GAL., 70 MICRON PUMP ELEMENT

AFT AXLE, 40 GAL. 70 MICRON PUMP ELEMENT

O'RING-ENGINE FUEL FILTER CAP. #1837865-C1. 72MM X 3MM. ALSO SERVICED IN 9N184/9C165/9G270

O-RING-FRAME RAIL MOUNTED FUEL PUMP 9G282 ELEMENT 9N184 CAP 9G270. ALSO SERVICED IN 9G270/9N184/9A343/9G282. 91MM X 4MM

DRAIN PLUG WITH O'RING. ALSO SERVICED IN 9B249 FUEL PUMP MANIFOLD & 9G282 FRAME RAIL MOUNTED FUEL PUMP ASSEMBLY. O'RING ALSO SERVICED IN 9A343

BRACKET-FRAME RAIL MTD FUEL PUMP(9G282). GROMMETS/SCREWS 9S479. ALSO SERVICED IN 9G282

GASKET KIT FOR 9G282 FRAME RAIL FUEL PUMP ASSEMBLY

ALSO SERVICED IN 9155. KIT - FUEL REGUALTING VALVE. ICLUDES CARRIER, SEAL, SPRING & INSTRUCTION SHEET.

KIT-FUEL MANIFOLD, PART OF 9G282 FRAME RAIL MOUNTED FUEL PUMP/FILTER ASSEMBLY. INCLUDES WATER-IN-FUEL SENSOR

INCL. SVC. PIGTAIL HARNESS 9A350(MTG NUTS N804495-S100 & N807585-S100). MTG BRKT IS 9346. REPLACE THE MTG NUTS W520202-S309 WHEN REPLACING THE PUMP(SECURES 9C407/9346 TO THE FRAME).

KIT-INTERNAL FUEL PUMP & MOUNTING SCREWS(FRAME RAIL MOUNTED). INCLUDES 9R534 KIT-COVER O'RING & MOUNTING SCREWS. ALSO SERVICED IN 9G282 COMPLETE PUMP ASSEMBLY WITH FUEL FILTER

ALSO SERVICED IN 9275. USED ON THIRD TUBE PORT(AUX GENERATOR TUBE) AS A END CAP

ALSO SERVICED IN 9155. CAP-THREADED END-FUEL FILTER. SCREWS INTO TOP OF 9N180. (#1831193-C91)

CAP; LOCATED ON ENGINE FUEL FILTER HOUSING. INCLUDES 9364 GASKET(ROUND 72MM X 3MM)

KIT-CAP WITH O'RING 9364 FOR FRAME MOUNTED FUEL PUMP ELEMENT/HOUSING. ALSO SERVICED IN 9G282 FRAME RAIL MOUNTED FUEL PUMP ASY. O'RING ALSO SERVICED IN KITS 9364/9N184/9A343.

CURRENTLY SERVICED ONLY IN 9155. KIT - VALVE ASY. - PRESSURE REGULATING (FUEL FILTER).

KIT-RETURN FUEL VALVE ASSEMBLY-DFCM & ACTUATOR-THERMO. ALSO SERVICED IN 9G282 FRAME RAIL FUEL MOUNTED FUEL PUMP ASSEMLBY

ALSO SERVICED IN 9155. KIT - FUEL FILTER HOUSING ASY. (#1831194-C91)

FUEL PUMP(FRAME RAIL MOUNTED) HOUSING ASSEMLBY. ALSO SERVICED IN 9G282

ALSO SERVICED IN 9155. (#1825864-C92) INCLUDES ELEMENT (WITH PRE-FILTER), GASKET & INSTRUCTION SHEET. THE OLD SERVICE ELEMENT (1825864C91, NO PRE-FILTER) IS ACCEPTABLE TO USE.

KIT CONTAINS 2 FILTERS. ENGINE MOUNTED FILTER & FRAME MOUNTED FILTER. O-RINGS ARE INCLUDED IN KIT.

KIT-FUEL PUMP COVER O'RING AND MOUNTING SCREWS. O'RING ALSO SERVICED IN 9A343/9C407/9G282.

Снято с производства

BOLT-M8 X 30 HEX FLANGE. (4) ATTACH 6616 OIL PUMP HOUSING & (5) ATTACH 8501 WATER PUMP. #1817958-C1.

KIT-SCREW/GROMMETS. ALSO SERVICED IN 9A335 BRACKET ASY. AND 9G282 FRAME RAIL MTD FUEL PUMP 9G282

Снято с производства
