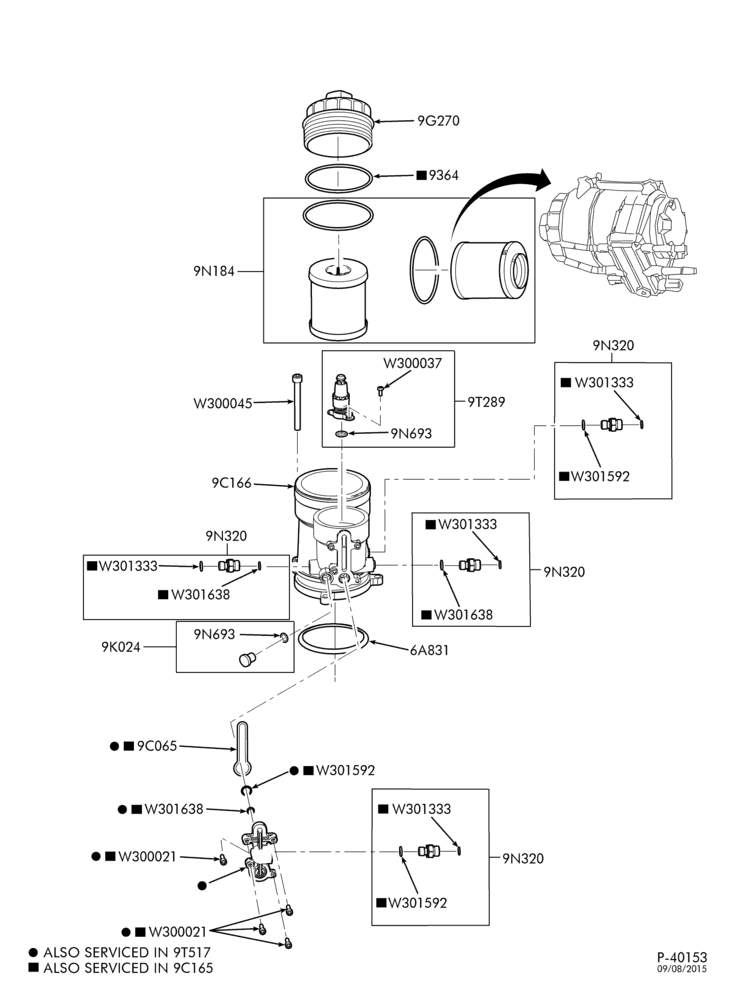

8 CYL. 6.0L - DIESEL-Fuel filter & related parts

O-RING UNDER FUEL FILTER HOUSING

O'RING-ENGINE FUEL FILTER CAP. #1837865-C1. 72MM X 3MM. ALSO SERVICED IN 9N184/9C165/9G270

O-RING-FRAME RAIL MOUNTED FUEL PUMP 9G282 ELEMENT 9N184 CAP 9G270. ALSO SERVICED IN 9G270/9N184/9A343/9G282. 91MM X 4MM

SEAL KIT INCLUDE: (1) O'RING FOR ""9B249'', (2) O'RINGS FOR ""9J294'' & (2) O'RINGS FOR ""9A153''. ALSO INCLUDED IN ""9B249, 9J294 & 9A153'' ASY.S.

#1838630-C1. GASKET-FUEL PRESSURE REGULATOR. ALSO SERVICED IN 9C165/9T517. HARP SHAPE. ATTACH TO 9C166

CONTAINS O-RINGS AND HARDWARE AS SHOWN IN ILLUSTRATION.

REPLACEMENT PART MAY DIFFER FROM ORIGINAL REMOVE PLASTIC SEAT ON REGULATOR FOR USE ON NEW PART; MOUNTING BOLTS ARE W300045 (M8 X 75). NOTE: LINES TO CYL HEADS & FRAME CONNECT TO HOUSING USING 9N320 FITTINGS.

ALSO SERVICED IN 9275. USED ON THIRD TUBE PORT(AUX GENERATOR TUBE) AS A END CAP

ALSO SERVICED IN 9155. CAP-THREADED END-FUEL FILTER. SCREWS INTO TOP OF 9N180. (#1831193-C91)

CAP; LOCATED ON ENGINE FUEL FILTER HOUSING. INCLUDES 9364 GASKET(ROUND 72MM X 3MM)

KIT-CAP WITH O'RING 9364 FOR FRAME MOUNTED FUEL PUMP ELEMENT/HOUSING. ALSO SERVICED IN 9G282 FRAME RAIL MOUNTED FUEL PUMP ASY. O'RING ALSO SERVICED IN KITS 9364/9N184/9A343.

PLUG; M17 X 16MM; HIGH PRESSURE OIL PUMP, FUEL FILTER & FUEL RAIL. INCLUDES O'RING 9N693. #1837644-C91.

SUPPLY RAIL - RH CYL. HEAD; INCLUDES O'RING F4TZ 9N693-A.

ALSO SERVICED IN 9155. (#1825864-C92) INCLUDES ELEMENT (WITH PRE-FILTER), GASKET & INSTRUCTION SHEET. THE OLD SERVICE ELEMENT (1825864C91, NO PRE-FILTER) IS ACCEPTABLE TO USE.

KIT CONTAINS 2 FILTERS. ENGINE MOUNTED FILTER & FRAME MOUNTED FILTER. O-RINGS ARE INCLUDED IN KIT.

ATTACH 9B273 FUEL RETURN TUBE TO RH CYL HEAD-FRONT. ALSO SERVICED IN 9155 FUEL/WATER SEPARATOR(CONNECTS 9D308 & 9B273 TUBES). #606885-C1.

M12; INCLUDES O'RINGS W301333 & W301638

M16; INCLUDES O'RINGS W301321 & W301592

16MM OD X 2MM THICK. ALSO SERVICED IN 6N853 OIL TUBE CONNECTOR AND WITH 9K024 PLUG

16MM OD X 2MM THICK.

16MM OD X 2MM THICK.

(3) 2.1 INCHES IN DIA. ALSO SERVICED IN 9P458 ASSY.

(2) 34MM OD X 5MM THICK. ALSO SERVICED IN 9P458 ASSY.

#1835339-C1. 22MM OD X 2MM THICK. ALSO SERVICED IN ENGINE HIGH PRESSURE PUMP KIT 9G804

#1835350-C1. 21MM OD X 4MM THICK. ALSO SERVICED IN ENGINE HIGH PRESSURE PUMP KIT 9G804

#1836505-C1. 11MM OD X 2MM THICK. O-RING FOR CAM POSITION SENSOR

#1837799-C1. 14MM OD X 2MM THICK. O-RING FOR ECT AND EOP SENSOR

#1837800-C1. 14MM OD X 2MM THICK. O-RING FOR ICP SENSOR

#1837803-C1. 18MM OD X 2MM THICK. O-RING FOR MANIFOLD AIR TEMP. SENSOR

#1837889-C1. 10MM OD X 2MM THICK. O-RING FOR CAM POSITION SENSOR

(1) 16MM OD X 2MM THICK. ALSO SERVICED IN DIAGNOSTIC VALVE 6K702 IN OIL COOLER

(4) COMPLETE SEAL KIT THAT ALSO COMES WITH OIL COOLER ASY. CONTAINS ALL SEALS REQUIRED TO R&R OIL COOLER.

14MM OD X 2MM THICK. O-RING FOR PLUG ON FUEL FILTER HOUSING. ALSO USED IN HIGH PRESSURE PUMP COVER.

SEAL FOR 9K024 ON H/P PUMP COVER

SEAL INSIDE FUEL FILTER HOUSING BETWEEN 9T289 & 9C166.
