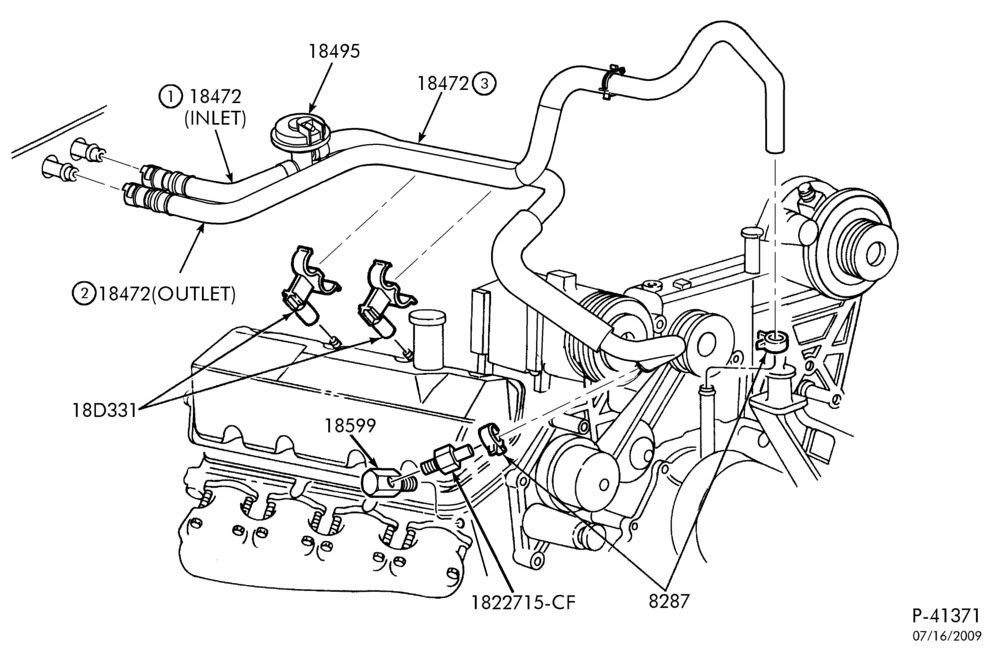

HEATERS-Heater hose installation with ambient temp/speed pack - 8cyl. 7.3L

USED TO ATTACH HEATER HOSES TO HEATER CORE.

USED TO ATTACH HEATER HOSES TO HEATER CORE.

USED TO ATTACH HEATER HOSES TO HEATER CORE.

USED TO ATTACH HEATER HOSES TO HEATER CORE.

3 1/2" CLAMP. AIR INLET HOSE TO TURBO INLET 2 REQUIRED. (1 PER PACKAGE)

NAVISTAR #1824400-C1, FORD #F81A 8287-EA - INLET TO EXHAUST SYSTEM - ATTACHES 6K682(TURBO) TO 6K854(ADAPTOR) - PKG OF 1

USED TO ATTACH HEATER HOSES TO HEATER CORE.

USED TO ATTACH HEATER HOSES TO HEATER CORE.

V-BAND TURBO OUTLET CLAMP FROM TURBO TO 6K889

RETURN HOSE.

RETURN HOSE.

RETURN HOSE.

Снято с производства

#1 IN ILLUSTRATION. COMPLETE HOSE ASSY. INCLUDES FLUID CONTROL VALVE.

Снято с производства

#2 IN ILLUSTRATION. (HAS "T" IN LINE)

Снято с производства

JUMPER TUBE - HEATER "IN" TO AUXILIARY LINES, #1 IN ILLUSTRATION

Снято с производства

JUMPER TUBE - HEATER "OUT" TO AUXILIARY TUBES, #2 IN ILLUSTRATION

Снято с производства

RETURN HOSE.

Снято с производства

#1 IN ILLUSTRATION - INLET CONTAINS FLUID CONTROL VALVE.

#1 IN ILLUSTRATION. CONTAINS HEATER VALVE.

Снято с производства

#2 IN ILLUSTRATION. (HAS "T" IN LINE)

Снято с производства

JUMPER TUBE - HEATER "IN" TO AUXILIARY LINES, #1 IN ILLUSTRATION

Снято с производства

JUMPER TUBE - HEATER "OUT" TO AUXILIARY TUBES, #2 IN ILLUSTRATION

Снято с производства

RETURN HOSE.

Снято с производства

HEATER HOSE ASY

Снято с производства

HEATER HOSE ASY

Снято с производства

#1 & #2 IN ILLUSTRATION. RETURN HOSE FROM AUX HEATER CORE & FRONT HEATER CORE TO WATERPUMP. INCLUDES TEE & WATER FLOW CONTROL VALVE.

Снято с производства

#3 IN ILLUSTRATION. AUX. SUPPLY HOSE FROM RH CYLINDER HEAD TO UNDERBODY TUBE.

Снято с производства

FOR METAL HOSE & TUBE ASY. ON FIREWALL, REFER TO 18B402.

SUPPLY HOSE FROM BACK SIDE OF LH CYLINDER HEAD TO THE 18B402 METAL TUBE. ORINGS INSIDE THE QUICK CONNECTOR ARE 391192-S.

Снято с производства

#2 IN ILLUSTRATION. RETURN LINE. HEATER CORE TO WATER PUMP.

HEATER CONTROL VALVE.

HEATER CONTROL VALVE.

VALVE ASY - HEATER WATER CONTROL

VALVE ASY - HEATER WATER CONTROL

VALVE ASY - HEATER WATER CONTROL

VALVE ASY - HEATER WATER CONTROL

NIPPLE EXITING WATER PUMP. O-RING IS 1825293C1.

3~8" HOSE NIPPLE ON FRONT RH AND BACK LH CYLINDER HEAD.

Снято с производства

ELBOW CONNECTING TO HEATER CORE.

ELBOW CONNECTING TO HEATER CORE.

ELBOW ON FRONT RH & REAR LH CYLINDER HEAD.

HEATER HOSE

PRESS IN HEATER HOSE FITTING WITH 1/4" FITTING ON THE SIDE.

THIS PART PRESSES INTO THE FRONT RIGHT MANIFOLD NEXT TO THERM. HOUSING AND HAS ONE NIPPLE FOR HEATER INLET HOSE

"45 DEG. " - 3/8'' - 18 - 5/8'' HOSE CONNECTION

Снято с производства

BRACKET LOCATED ON HEATER HOSE
