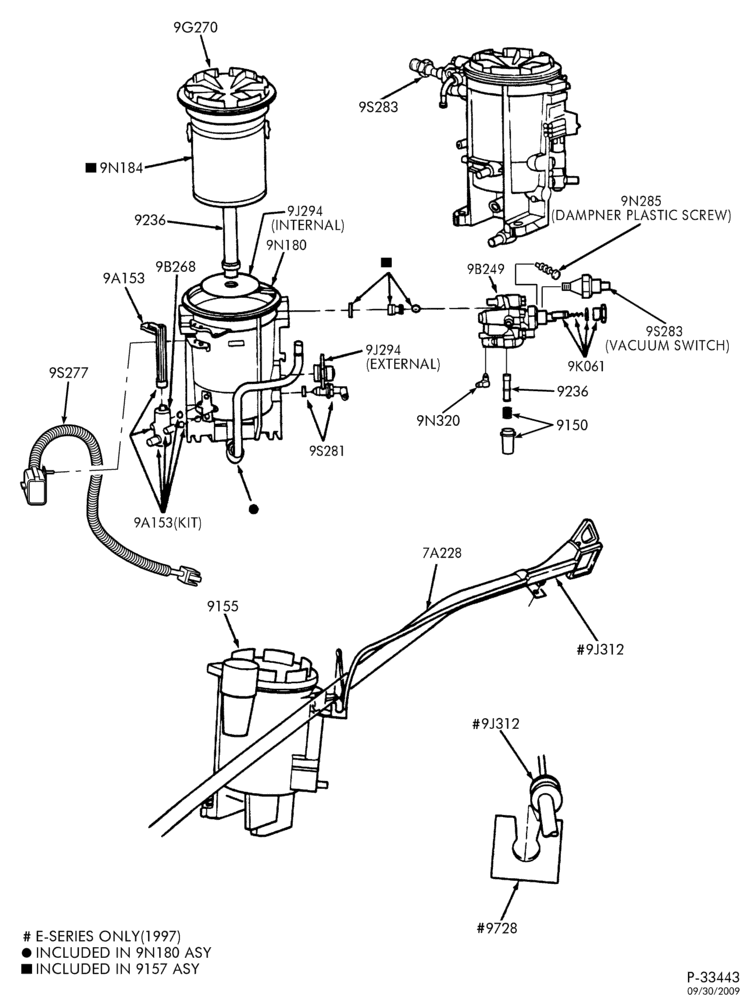

8 CYL. 7.3L - DIESEL-Fuel filter, water separator & heater service kit

#GREEN PAINT

Снято с производства

#WHITE PAINT

Снято с производства

#GREEN PAINT

Снято с производства

#YELLOW PAINT

Снято с производства

#GREY PAINT

Снято с производства

SEAL (7A228 TO 7A160) O-RING - .556'' X .103''

(T-1-A) SEAL (TUBE TO CASE)

KIT - PRESCREEN CAP ASY. & SEALS.

KIT - PRESCREEN ELEMENT & SEALS.

CARTRIDGE TYPE - MOUNTS TO FRAME

FUEL/WATER/FILTER SEPARATOR ASSY. SERVICE ALL DETAILS IN ASSEMBLY EXCEPT FILTER F4TZ-9N184-A.

FUEL/WATER/FILTER SEPARATOR ASY. SERVICE ALL DETAILS IN ASSEMBLY EXCEPT FILTER F4TZ 9N184-A.

REFER TO 9N184

II-76 - ADAPTER TUBE (ATT. TO E4US 9155-AA) 3/8'' I.D. X 5/8'' - 18

Снято с производства

USES PUSH CONNECT FITTINGS IN CONJUNCTION W/FRAME MOUNTED FUEL FILTER

USES PUSH CONNECT FITTINGS IN CONJUNCTION W/FRAME MOUNTED FUEL FILTER

FILTER IS PART OF 9275 SENDER - REFER BASIC 9A011

TUBE-FUEL FILTER HOUSING CENTER. ALSO SERVICED IN 9155.

ATTACHES ""9J312'' CABLE TO ""9155'' ASY.

Снято с производства

Снято с производства

KIT-WATER DRAIN VALVE ASSY.-FUEL/WATER/FILTER SEPARATOR. ATTACH TO 9N180. ALSO SERVICED IN 9155.

KIT - FUEL RECIRC MODULE ASY.; ALSO SERVICED IN F6TZ 9155-B.

KIT - FUEL RECIRC MODULE ASY.; ALSO SERVICED IN F6TZ 9155-A.

CAP-THREADED END-FUEL FILTER. SCREWS INTO TOP OF 9N180. ALSO SERVICED IN 9155.

EXTERNAL FUEL HEATER CONNECTOR WITH O-RING. LOCATED ON SIDE OF HOUSING.

FUEL HEATER ELEMENT ONLY. LOCATED UNDER FUEL FILTER INSIDE 9N180 HOUSING.

KIT - VALVE ASY. - PRESSURE REGULATING (FUEL FILTER). ALSO SERVICED IN 9B249/9155.

Снято с производства

KIT - FUEL FILTER HOUSING ASY. ALSO SERVICED IN 9155.

INCLUDES ELEMENT, BEVEL-CUT GASKET, SERVICE INSTRUCTIONS. ALSO SERVICED IN F4TZ 9155-A FILTER ASY.-FUEL/WATER SEPARATOR.

DAMPENER - VACUUM SWITCH (FUEL FILTER). LOCATED BETWEEN ""9N180/9S283''; ALSO SERVICED IN ""9155''. NOTE: PLASTIC SCREW SHAPE

Снято с производства

ATTACH 9B273 FUEL RETURN TUBE TO RH CYL HEAD-FRONT. ALSO SERVICED IN 9155 FUEL/WATER SEPARATOR(CONNECTS 9D308 & 9B273 TUBES).#1822632-C1.

ALSO SERVICED IN ""9155'' ASY. (NOTE: LT. BLUE RECTANGULAR RIBBED SEAL TO FUEL HEATER CONNECTOR IS 1807278-C1.)

SEAL

SEAL-FUEL HEATER CONNECTOR

Снято с производства

WATER IN FUEL SENSOR; THREADED INTO SIDE OF FILTER HOUSING.

WATER SENSOR SWITCH

#1809435-C1
