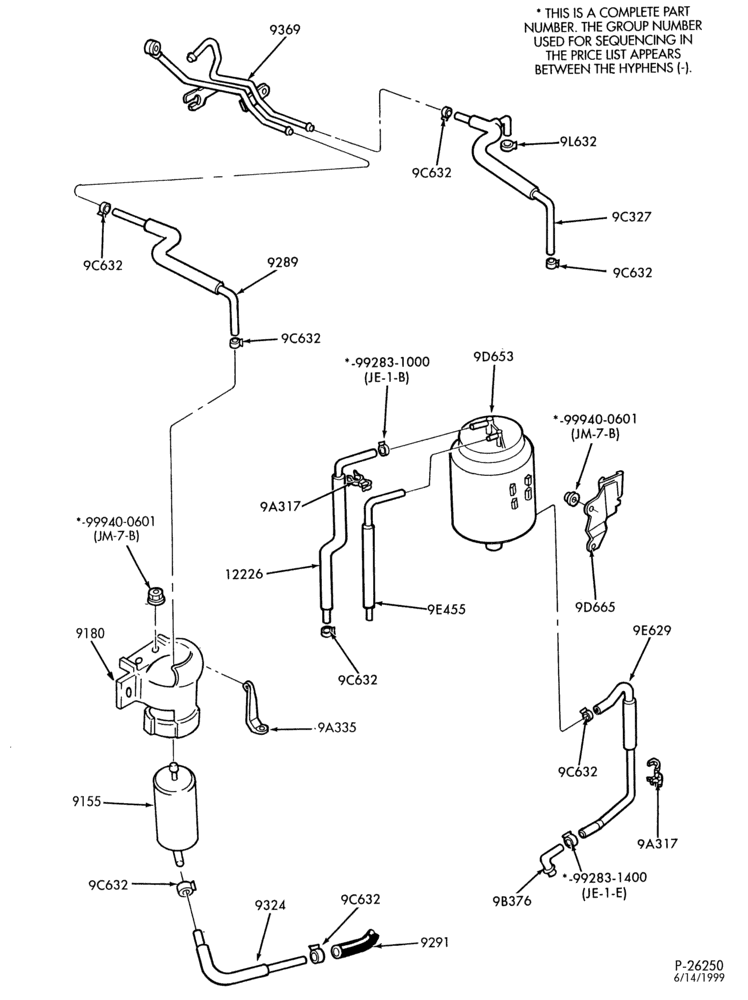

6 CYL. 2.5L-Fuel vapor canister, filter & related parts

FUEL VAPOR CANISTER HOSE GOES TO LARGER CONNECTOR

ATTACHES TO 9D474

ATTACHES TO 9D474

ATTACHES TO 9D474 VALVE

ATTACHES TO 9D474 VALVE 4

ATTACHES TO 9D474 VALVE

ATTACHES TO 9D474 VALVE

ATTACHES TO 9D474 VALVE

ATTACHES TO BOTTOM OF INTAKE MANIFOLD (LARGE HOSE)

THROTTLE BODY VACUUM TUBE

THROTTLE BODY VACUUM TUBE

VACUUM TO SIDE OF INTAKE MANIFOLD

5/32'' ID - 50 FT ROLL-RUBBER

7/64'' ID - 50 FT. LONG ROLL- RUBBER

Снято с производства

BULK HOSE-1/32'' ID X 50 FT. LONG ROLL

Снято с производства

BULK HOSE-7/32'' ID X 50 FT. LONG ROLL

Снято с производства

BULK NYLON HOSE - 3/32'' ID

Снято с производства

90 DEG. BEND - 5/32'' ID ONE END - 7/16'' ID OTHER END CUT TO SIZE

(II-187-AJ)-ELBOW-3/16'' X 3/16'' TUBE 90 DEGREE

(II-246-H-)-ELBOW-1/4'' X 1/4'' TUBE 90 DEGREE

Снято с производства

74 MM DIAMETER

Снято с производства

Снято с производства

HOSE ASSY-FILTER TO FUEL RAIL

Снято с производства

HOSE ASSY-FILTER TO FUEL RAIL

Снято с производства

HOSE ASSY-FILTER TO FUEL RAIL

Снято с производства

STEEL - 1/4'' O.D. - 25 FT ROLL

Снято с производства

STEEL - 3/8'' O.D. - 25 FT. ROLL

Снято с производства

STEEL - 5/16'' O.D. - 25 FT. ROLL

Снято с производства

TYPE 1 - STEEL - 1/4'' TUBE - 12'' LONG W/PUSH CONNECT TUBE ENDS

Снято с производства

TYPE 1 - STEEL - 5/16'' TUBE - 12'' LONG W/PUSH CONNECT TUBE ENDS

Снято с производства

NYLON - 4.08MM I.D. TUBE (APPROX. 3/16'') - 25 FT. ROLL

Снято с производства

NYLON - 6.2MM I.D. TUBE (APPROX. 1/4'') - 25 FT. ROLL

Снято с производства

NYLON - 8.2MM I.D. TUBE (APPROX. 5/16''-3/8'') - 25 FT. ROLL

Снято с производства

TYPE 2 - 5/16'' ELBOW PUSH CONNECTOR WITH 18'' OF NYLON TUBING ATTACHED

Снято с производства

TYPE 3 - 1/4'' STRAIGHT PUSH CONNECTOR WITH 18'' OF NYLON TUBING ATTACHED

Снято с производства

TYPE 3 - 5/16'' STRAIGHT PUSH CONNECTOR WITH 18'' OF NYLON TUBING ATTACHED

Снято с производства

TYPE 2 - 3/8'' 90 DEGREE ELBOW PUSH CONNECTOR WITH 18'' NYLON TUBING ATTACHED

Снято с производства

TYPE 3 - 3/8'' STRAIGHT PUSH CONNECTOR WITH 18'' NYLON TUBING ATTACHED

Снято с производства

MAIN FUEL SUPPLY LINE

Снято с производства

SUPPLY LINE - LOCATED ON TOP OF FUEL TANK

Снято с производства

(II-177-DD) UNION-3/8'' FLARELESS TUBE

Снято с производства

(II-177-L) UNION-5/16'' FLARELESS SLEEVE

(II-177-W) UNION-1/4'' FLARELESS SLEEVE

Снято с производства

(MM-112-AF) NUT-1/4'' FLARELESS TUBE

(MM-113-AB) NUT-5/16'' FLARELESS TUBE

(MM-113-AH) NUT-3/8'' FLARELESS TUBE

(TT-8-E) SLEEVE-1/4'' FLARELESS TUBE

Снято с производства

(TT-9-CC) SLEEVE-5/16'' FLARELESS TUBE

(TT-9-D) SLEEVE-3/8'' FLARELESS TUBE

Снято с производства

(AI-110-G) PUSH CONNECT-FEMALE-3/8 STRAIGHT CONNECTOR ASSY 9.5 TUBE X 8.0 HOSE-TYPE 3

Снято с производства

(AI-112-G) PUSH CONNECT FEMALE-3/8 X 5/16 90 DEGREE ELBOW ASSY 9.5 TUBE X 6.3 HOSE TYPE 2

(AI-114-E) PUSH CONNECT-MALE-5/16 CONNECTOR 8.0 TUBE X 7.0 HOSE PUSH CONNECT TYPE 7

(AI-114-G) PUSH CONNECT-MALE-3/8 X 5/16 CONNECTOR 6.4 TUBE X 9.5 HOSE-TYPE 7

Снято с производства

(AI-19) UNION-6.3 TUBING-2 BARBED CONNECTOR FOR SPLICING 1/4'' NYLON FUEL LINE-TYPE 4

Снято с производства

(AI-19-B) CONNECTOR (FOR 3/8'' HOSE) - TYPE 4

Снято с производства

(AI-19-D) UNION-8.0 TUBING-5 BARBED CONNECTOR FOR SPLICING 5/16'' NYLON FUEL LINE-TYPE 5

Снято с производства

(AR-51) RETAINER-3/8'' TUBE PUSH CONNECT

(AR-51-A) RETAINER-5/16'' TUBE PUSH CONNECT - (8/94)

(AR-51-B) RETAINER-12.7 PUSH CONNECT (DUCK BILL)

Снято с производства

(AR-51-C) RETAINER-6.35 PUSH CONNECT (DUCK BILL)

(TT-50-C)-"O" RING-3/8'' TUBE-BROWN COLOR- ALSO REFER TO TSB 87-3, ARTICLE 87-3-8

Снято с производства

(TT-50-G)-"O" RING-1/2'' TUBE-BROWN COLOR- ALSO REFER TO TSB 87-3, ARTICLE 87-3-8

Снято с производства

(AI-112-L) PUSH CONNECT-FEMALE-ELBOW 90 DEGREE - 3/8'' X 3/8'' ELBOW ASSY. 9.5 TUBE X 8.0 HOSE - TYPE 2 - (8/94)

(AI-19-A) PUSH CONNECT-MALE-CONNECTOR-8.0 TUBE X 9.0 HOSE-3/8'' X 3/8'' - TYPE 7

Снято с производства

(AI-110-CA) PUSH CONNECT-FEMALE-STRAIGHT - 6.35MM HOSE X 6.35 TUBE - TYPE 3

(AI-110-DA) PUSH CONNECTOR FEMALE-STRAIGHT CONNECTOR ASSY- 7.9MM TUBE X 6.3MM HOSE-TYPE 3

(AI-110-EA) PUSH CONNECT-FEMALE-STRAIGHT CONNECTOR ASSY 9.5MM TUBE X 6.4MM HOSE-TYPE 3

(AI-112-EA) PUSH CONNECT-FEMALE-90 DEGREE-7.94MM TUBE X 6.35MM HOSE- TYPE 2

Снято с производства

(AI-114-C) SPRING LOCK COUPLING-MALE-11.0MM CONNECTOR BODY 6.25MM HOSE X 9.5MM PUSH CONNECT-TYPE 6

SPRING LOCK COUPLING-FEMALE-11.15MM SLEEVE 6.35MM HOSE X 9.5MM PUSH CONNECT-TYPE 5, FOR AVAILABILITY AND CURRENT PRICING, CONTACT WWW.VPARTSINC.COM (877-846-8243), OR D2DLINK@OECONNECTION.COM

Снято с производства

SPRING LOCK COUPLING-FEMALE-14.33MM SLEEVE 6.35MM HOSE X 12.7MM PUSH CONNECT-TYPE 8

Снято с производства

SPRING LOCK COUPLING-MALE-14.17MM CONNECTOR BODY 6.35MM HOSE X 12.7MM PUSH CONNECT-TYPE 6

Снято с производства

1/2'' TUBE SIZE X .500'' ID X .797'' OD - 25 FT. ROLL

Снято с производства

1/4'' TUBE SIZE - 25 FT. ROLL

Снято с производства

3/16'' TUBE SIZE X .343'' OD X .156'' ID - 25 FT. ROLL

Снято с производства

3/4'' TUBE SIZE X 1.03'' OD X .73'' ID - 25 FT. ROLL

Снято с производства

3/8'' TUBE SIZE - 25 FT. ROLL

5/16'' TUBE SIZE - 25 FT. ROLL

5/8'' TUBE SIZE X .630'' I.D. X 1.00'' O.D. - 25 FT. ROLL

Снято с производства

CONNECTS FUEL SUPPLY LINE TO BOTTOM OF FUEL FILTER

CONNECTS FUEL SUPPLY LINE TO BOTTOM OF FUEL FILTER

CONNECTS FUEL SUPPLY LINE TO BOTTOM OF FUEL FILTER

BREATHER HOSE - FILLER TUBE TO TANK

CONNECTS VAPOR VALVE TO FUEL TUBE

RETURN LINE - LOCATED AT FRONT OF FUEL TANK

RETURN LINE - LOCATED ON TOP OF TANK - CONNECTS FUEL PUMP TO FUEL LINE

SUPPLY LINE - LOCATED AT FRONT OF FUEL TANK

SUPPLY LINE - LOCATED ON TOP OF TANK - CONNECTS FUEL PUMP TO FUEL LINE

12.5 MM ID - 25 FT. ROLL

(EE-17-H)-CLAMP-USED WITH 1/4'' HOSE

Снято с производства

(EE-17-J)-CLAMP-USED WITH 5/16'' HOSE

Снято с производства

CONNECTS TO FUEL RAIL (SUPPLY AND RETURN)

Снято с производства

CONNECTS TO FUEL RAIL (SUPPLY AND RETURN)

Снято с производства

LOCATED ON RETURN FUEL LINE AT FUEL TANK

Снято с производства

Снято с производства

LOCATED ON END OF EVAPORATOR HOSE

Снято с производства

CONNECTS 9369 TO MAIN RETURN LINE

Снято с производства

CONNECTS 9369 TO MAIN RETURN LINE

Снято с производства

CONNECTS REGULATOR TO 9369 TUBE ASY

Снято с производства

CONNECTS 9369 TO MAIN RETURN LINE

Снято с производства

CLAMP ATTACHES TO TOP OF FUEL FILTER

Снято с производства

ATTACHES TO 9B659 AIR HOSE.

Снято с производства

CLAMP ATTACHES TO AIR FLOW SENSOR

Снято с производства

Снято с производства

Снято с производства

Снято с производства

Снято с производства

STRAIGHT HOSE

Снято с производства

HOSE WITH 90 DEGREE BEND

Снято с производства

METAL PIPE

Снято с производства

Снято с производства

(II-106-VA) - FITTING (HOSE CONNECTOR TEE - 4 WAY) - 1/4'' X 1/4'' X 1/4'' X 2 13/16'' LONG (NYLON)

Снято с производства

(II-106-VE) - FITTING (HOSE CONNECTOR TEE - 5 WAY) - 3/16'' X 3/16'' X 3/16'' X 3'' LONG (NYLON)

Снято с производства

(II-187-AJ) FITTING (HOSE CONNECTOR ELBOW) 3/16'' TUBE

(II-191-Q) - FITTING (HOSE CONNECTOR TEE - 3 WAY) - 3/16'' X 3/16'' X 3/16'' X 1 7/16'' LONG (NYLON)

(II-191-VA) UNION (HOSE CONNECTOR) 1/8'' X 1/8'' TUBE

Снято с производства

(II-191-VE) - FITTING (HOSE CONNECTOR) - 1/8'' X 1/8'' X 1 1/8'' LONG (NYLON)

(II-233-G) FITTING (HOSE CONNECTOR) CROSS TEE, 3/16'' TUBE

Снято с производства

(II-7-E) CONNECTOR (HOSE CONNECTOR) 3/16'' X 1/8'' TUBE

Снято с производства

(II-7-H) CONNECTOR (HOSE CONNECTOR) 1/4'' X 1/8'' TUBE

Снято с производства

Снято с производства

Снято с производства

Снято с производства

Снято с производства

Снято с производства
