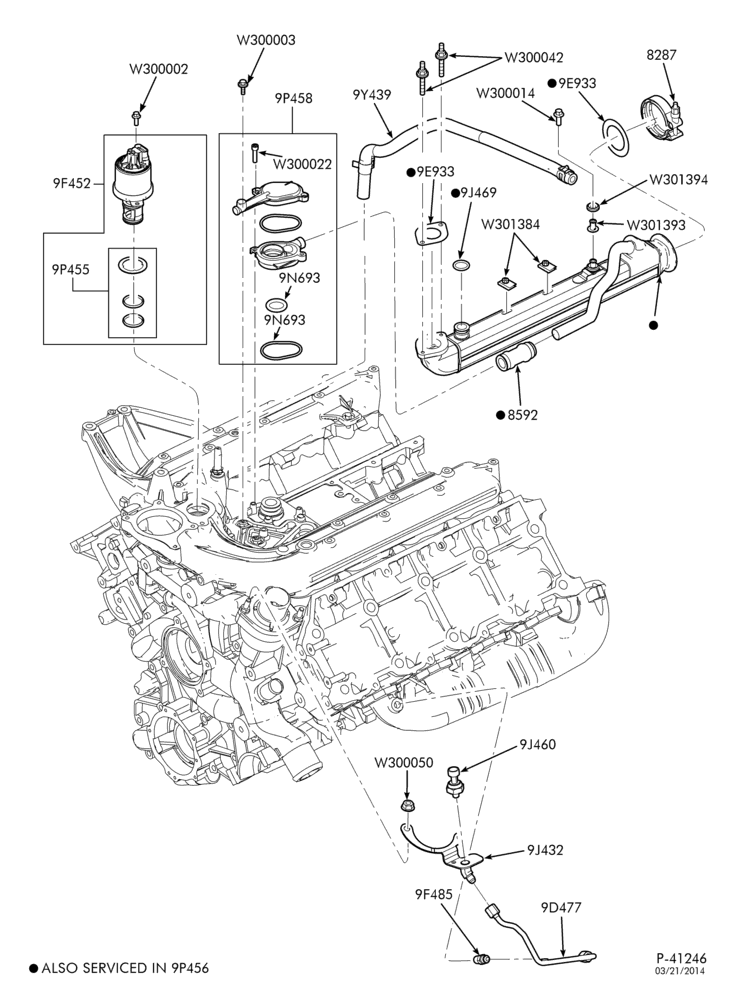

8 CYL. 6.0L - DIESEL-EGR system

BREATHER HOSE CLAMP

CLEAN AIR HOSE INLET TO TURBO - (NAVISTAR ID 274090R91)

EGR COOLER TO EXHAUST PIPE

INLET FROM EXHAUST SYSTEM TO TURBO; 100MM V STYLE CLAMP

2 1/2'' WORM CLAMP; ATTACHES TURBO AIR OUTLETS FROM "Y" ADAPTOR TO CYLINDER HEAD INLET.

3 1/2 INCH CLAMP - #397257-R1 THIS CLAMP MOUNTS ON TURBO IN CENTER OF CLEAN AIR SIDE GOING FROM AIR CLEANER (1 PER PACKAGE)

NAVISTAR #1824400-C1, FORD #F81A 8287-EA - INLET TO EXHAUST SYSTEM - ATTACHES 6K682(TURBO) TO 6K854(ADAPTOR) - PKG OF 1

TURBO OUTLET CLAMP

MEGA-TORQUE CLAMP 1 1/2''

Снято с производства

MEGA-TORQUE CLAMP 1 3/4''

MEGA-TORQUE CLAMP 2''

Снято с производства

V-BAND TURBO OUTLET CLAMP FROM TURBO TO 6K889

#3C34 8599-AB - #1840603C93 (INTERNATIONAL) - ONE END OF TUBE BOLTS TO HEATER HOSE AND THE OTHER END BOLTS TO THE FRONT COVER WHICH IS THE ONLY END WITH A GASKET - 3C3Z-9J469-AA(GASKET)

BLUE HOSE THAT CONNECTS 9P456 COOLER TO 9P458. (OEM HOSE WAS ORANGE).

CONNECTOR (LOWER INLET)

1 5/8'' TALL; 3 BOLT PATTERN

Снято с производства

ATTACHING BRACKET IS W301210

GASKET-EGR COOLER, FRONT. GASKET BETWEEN EGR COOLER AND BOTTOM OF INTAKE MANIFOLD.

GASKET-EGR COOLER, REAR

EGR BACKPRESSURE VALVE. INCLUDES GASKET/O"RINGS (REF. 9P455 REPAIR KIT)

BOLT; RETAINS EGR VALVE TO INTAKE

USED WITH 9431

USED WITH 9431

5/16 TUBE FLARE, 36MM LONG, 14MM NUT

USED W/MOUNTING BRKT. 9J432

INTL# 1844314-C1

SEAL-EGR COOLER. 27MM OD X 4MM.

#1838615-C1. 2.1 INCHES IN DIA. ALSO SERVICED IN 9P458 ASSY.

#1838618-C1. 34MM OD X 5MM THICK. ALSO SERVICED IN 9P458 ASSY.

#1835339-C1. 22MM OD X 2MM THICK. ALSO SERVICED IN ENGINE HIGH PRESSURE PUMP KIT 9G804

#1835350-C1. 21MM OD X 4MM THICK. ALSO SERVICED IN ENGINE HIGH PRESSURE PUMP KIT 9G804

#1837800-C1. 14MM OD X 2MM THICK. O-RING FOR ICP SENSOR

#1839033-C1. 16MM OD X 2MM THICK. ALSO SERVICED IN DIAGNOSTIC VALVE 6K702 IN OIL COOLER

14MM OD X 2MM THICK. O-RING FOR PLUG ON FUEL FILTER HOUSING. ALSO USED IN HIGH PRESSURE PUMP COVER.

COMPLETE SEAL KIT THAT ALSO COMES WITH OIL COOLER ASY. CONTAINS ALL SEALS REQUIRED TO R&R OIL COOLER.

SEAL FOR 9K024 ON H/P PUMP COVER

SEAL INSIDE FUEL FILTER HOUSING BETWEEN 9T289 & 9C166.

GASKET/O'RING REPAIR KIT FOR 9F452 EGR VALVE. ALSO SERVICED IN 9424 KIT

CLAMP; EGR COOLER TO EXHAUST

KIT- EGR COOLER & RELATED PARTS. INCLUDES "ORANGE" HOSE WHICH IS SERVICED ONLY IN THE 9P456 ASSEMBLY & 9433/9424 KITS

BOLT; M6 X 55MM; RETAINS EGR COOLER TO BOTTOM OF INTAKE.

GROMMET FOR EGR COOLER

J-NUT FOR EGR COOLER

SLEEVE FOR EGR COOLER GROMMET

WASHER FOR EGR COOLER GROMMET

BOLT; M8 X 20MM; RETAINS 9P458 TO ENGINE

SELF TAPPING SCREW FOR 9P458
