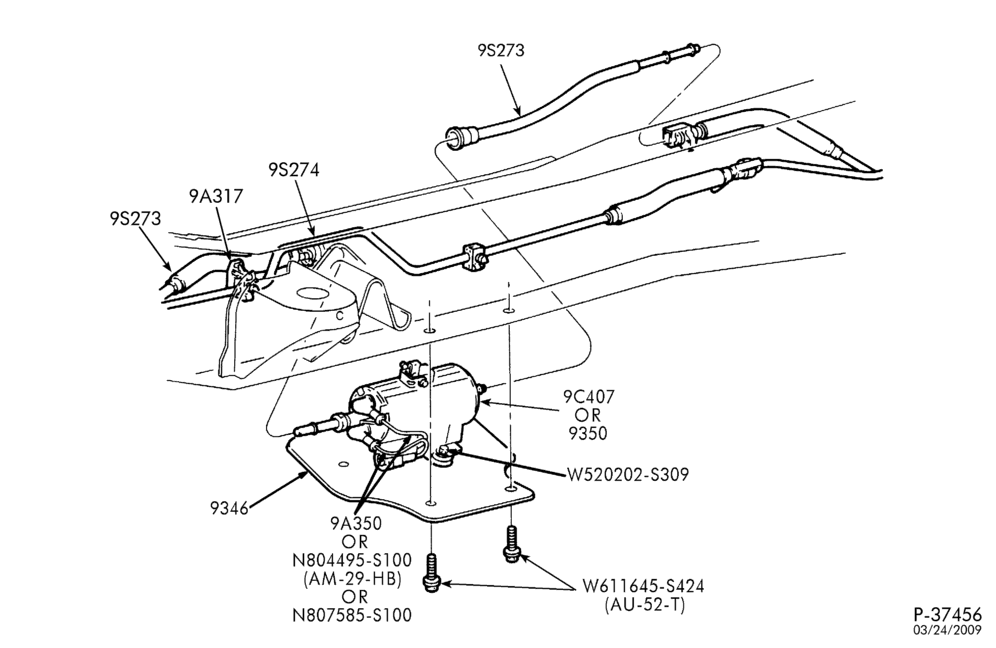

8 CYL. 7.3L - DIESEL-Fuel pump - frame mounted - electric

USED TO SECURE 9C407 TO FRAME RAIL. MTG NUTS W520202-S309. "CLEAN V ENGINE"

Снято с производства

INCL. SVC. PIGTAIL HARNESS 9A350(MTG NUTS N804495-S100 & N807585-S100). MTG BRKT IS 9346. REPLACE THE MTG NUTS W520202-S309 WHEN REPLACING THE PUMP(SECURES 9C407/9346 TO THE FRAME).

AFT AXLE 3 PORTS. F6DZ-9276-A GASKET

MIDSHIP 2 PORTS. INCLUDES F57U-9276-AC GASKET

MIDSHIP 3 PORTS. INCLUDES F57Z-9276-AC GASKET

MIDSHIP 3 PORTS. INCLUDES F57Z-9276-AC GASKET

AFT AXLE - 3 PORTS. GASKET F6DZ-9276-A

MIDSHIP- 2 PORTS. GASKET F57U-9276-AC PART OF THE ASSEMBLY AND SERVICED SEPARTELY

3 TUBE CLIP 68MM WIDE W/MTG STUD M6 X 1. MOUNTS 2 VAPOR & 1 BRK LINES IN MIDSHIP FRAME ORGANIZER.

Снято с производства

ALSO SERVICED IN 9H336

Снято с производства

3 TUBE(FUEL SUPPLY/RETURN/VAPOR) HOLDER CLIP W/MTG STEM. ALSO SERV IN 9S296.

CLIP-10.5 X 15.8 OPEN PUSH IN(3 TUBE DESIGN FUEL/DRAIN/VAPOR)

Снято с производства

CLIP-7.5 X 24.0 OPEN PUSH IN(4 CLIP FUEL/VAPOR/WIRE HARNESS/BRAKE)

Снято с производства

(2)REQD ATTACH TUBE ASY FU/TNK TO CVR & FU/LINE

Снято с производства

2-TUBE HOLDER W/SNAP IN PLUG TO MOUNT FRT FUEL SUPPLY/RETURN LINES 9S273/9S274.

Снято с производства

CLIP 12.5MM & CLAMP 18MM WITH TETHER. ATTACH FUEL SUPPLY LINE TO FUEL RAIL.

CLIP 9.0MM & CLAMP 18MM WITH TETHER. ATTACH FUEL SUPPLY LINE TO FUEL RAIL.

MOUNTS FRONT FUEL SUPPLY/RETURN/VAPOR LINES (9S273/9S274/9D676). NYLON CLIP 3 TUBE HOLDER 52MM WIDE W/MTG STEM.

MOUNTS FRT FUEL SUPPLY/RETURN/VAPOR LINES 9S273/9S274/9D676. NYLON CLIP 3 TUBE HOLDER 58MM WIDE W/O MTG STEM.

Снято с производства

FOR AVAILABILITY AND CURRENT PRICING, CONTACT WWW.VPARTSINC.COM (877-846-8243), OR D2DLINK@OECONNECTION.COM

Снято с производства

ALSO SERVICED IN 9C407 FRAME MTD PUMP. ATTACHING NUTS N804495-S100 & N807585-S100. "CLEAN V ENGINE"

Снято с производства

FOR AVAILABILITY AND CURRENT PRICING, CONTACT WWW.VPARTSINC.COM (877-846-8243), OR D2DLINK@OECONNECTION.COM

Снято с производства

ATTACHES TO 14406 AND FUEL PUMP/SENDER.

Снято с производства

INCL. SVC. PIGTAIL HARNESS 9A350(MTG NUTS N804495-S100 & N807585-S100). MTG BRKT IS 9346. REPLACE THE MTG NUTS W520202-S309 WHEN REPLACING THE PUMP(SECURES 9C407/9346 TO THE FRAME).

SUPPLY LINE, CONNECTS TO ENGINE FUEL RAIL

FUEL LINE FROM FRAME RAIL PUMP ENGINE FUEL LINES.

Снято с производства

JUMPER FROM FUEL LINE TO PUMP; 13'' LONG.

Снято с производства

SUPPLY LINE, CONNECTS TO ENGINE FUEL RAIL

Снято с производства

Снято с производства

RETURN LINE, CONNECTS TO ENGINE FUEL RAIL

Снято с производства

RETURN LINE, CONNECTS TO ENGINE FUEL RAIL

Снято с производства

Снято с производства
