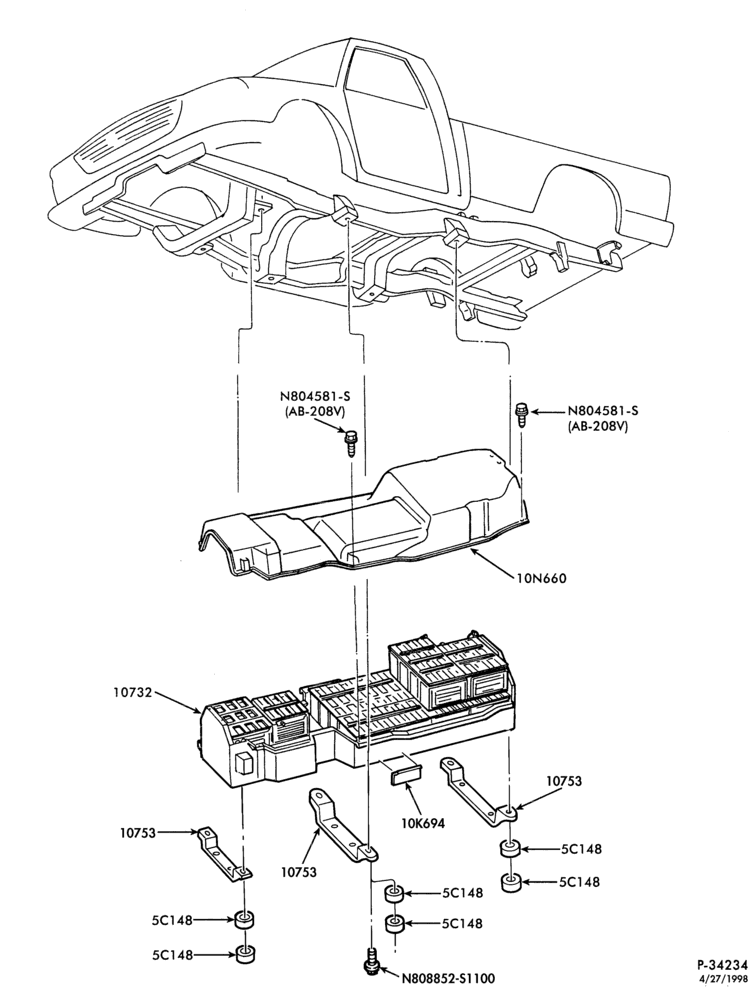

Генератор, INSTRUMENT CLUSTER, BATTERY-Battery tray installation - electric

LOWER

Снято с производства

UPPER

Снято с производства

MAIN BATTERY TRAY ASY.

MAIN BATTERY - CYCLED; WIDTH 4 9/16'' X LENGTH 15 1/4'' X HEIGHT 6 7/8'', SERVICE BATTERY HAS ENGLISH/FRENCH/SPANISH LANGUAGE LABELS

MAIN BATTERY SERVICE PACKAGE, INCLUDES (39) BXE-202 UNCYCLED BATTERY MODULES, NECESSARY AFTER APPROXIMATELY 2 YEARS AND/OR REPLACEMENT OF 5 BATTERY MODULES OCCURS. MUST ORDER F8YZ-10B690-CA BATTERY PACK REBUILD KIT.

MAIN BATTERY - CYCLED: WIDTH 4 1/2'' X LENGTH 15'' X HEIGHT 7''

Снято с производства

AUXILIARY BATTERY; WIDTH 4 9/16'' X LENGTH 15 1/4'' X HEIGHT 6 7/8''(REPLACED BY BXT-59, E7TZ-10718-B, YL5Z-10755-BA AND N803471-S36 - CHANGE TO STANDARD STYLE BATTERY TRAY)

BATTERY COVER FRONT MOUNTING BRACKET (STEEL).

Снято с производства

TYPE 1; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

TYPE 2; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

TYPE 3; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

TYPE 4; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

TYPE 5; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

TYPE 6; BATTERY LOCATOR BRACKET, REFER TO ILLUSTRATION SECTION 103.1

Снято с производства

""U'' SHAPED STEEL BRACKET, LOCATED IN THE CENTER OF THE COVER.

Снято с производства

""J'' SHAPED SECTION VIEW CHANNEL STEEL BRACKET, 300MM LONG, LOCATED IN THE CENTER OF THE COVER ON OPPOSITE SIDES.

Снято с производства

RETAINS COVER TO TRAY, 30MM X 120MM STEEL PLATE.

Снято с производства

UPPER BRACKET CLAMP; 125MM X 170MM X 12.7MM THICK.

Снято с производства

WIRING TO BATTERY TEMPERATURE SENSORS, COOL AND VENT BLOWER RELAY, BATTERY CONTROL MODULES AND ""14290'' CONNECTIONS.

Снято с производства

WIRING TO BATTERY CABLES (14A280) & BATTERY CONTROL MODULES.RELAY, BATTERY CONTROL MODULES.

BATTERY SEPARATOR ASY., LOWER BATTERY ROW 1, FRONT 3 BATTERYS; 15 3/4'' X 15 3/4''.

Снято с производства

BATTERY SEPARATOR ASY., LOWER BATTERY ROW 2, 15 3/4'' X 17 3/4''.

Снято с производства

BATTERY SEPARATOR ASY., LOWER BATTERY ROW 3, 15 3/4'' X 23 5/8''.

Снято с производства

BATTERY SEPARATOR ASY., LOWER BATTERY ROW 4, 15 3/4'' X 23 5/8''.

Снято с производства

BATTERY SEPARATOR ASY., LOWER BATTERY ROW 5, 15 3/4'' X 23 5/8''.

Снято с производства

BATTERY SEPARATOR ASY., UPPER BATTERY ROW 1, 11 3/4'' X 15 3/4''.

Снято с производства

BATTERY SEPARATOR ASY., UPPER BATTERY ROW 2, 8 1/2'' X 15 3/4''.

Снято с производства

BATTERY SEPARATOR ASY., UPPER BATTERY ROW 3, 15 3/4'' X 18''.

Снято с производства

BATTERY SEPARATOR ASY., UPPER BATTERY ROW 4, 13 3/4'' X 15 3/4''.

Снято с производства

LABEL TO IDENTIFY BATTERY MODULE PLACEMENT IN THE BATTERY PACK.

Снято с производства

BLOWER ASY. - HEATER

Снято с производства

BRACKET ASY. - HEATER MOUNTING, LOCATED IN FRONT CENTER OF MAIN BATTERY TRAY.

Снято с производства

BATTERY RETAINER, ADHESIVE STRIP 12 1/2'' LONG X 1/4'' THICK, INCLUDED IN F8YZ 10B699-GA, HA & JA BATTERY SEPARATOR ASY.S

Снято с производства

BATTERY RETAINER, ADHESIVE STRIP 12 1/2'' LONG X 1/2'' THICK, INCLUDED IN F8YZ 10B699-CA BATTERY SEPARATOR ASY.

Снято с производства

BATTERY RETAINER, ADHESIVE PAD 2''X 3'' X 1/2'' THICK, INCLUDED IN F8YZ 10B699-CA BATTERY SEPARATOR ASY.

Снято с производства

BATTERY COVER RETAINER, STEEL CLIP.

Снято с производства

BRACKET IN LOWER LH OF MAIN BATTERY TRAY, 45MM X 95MM INSIDE DIMENSION.

Снято с производства

BATTERY TRAY INSERT LOCATED ON REAR OF COVER, 70MM X 97MM INSIDE DIMENSIONS, INCLUDES (4) STUDS.

Снято с производства

RH BATTERY HEATER ASY.

Снято с производства

LH BATTERY HEATER ASY.

Снято с производства

BOTTOM BATTERY HEATER BLANKET ASY.

Снято с производства

SERVICE BATTERY KIT, ORDER WHEN REPLACING ENTIRE BATTERY (MODULE) PACK.

Снято с производства

BATTERY TRAY RETAINER, INCLUDES WELD NUT.

Снято с производства

BATTERY TRAY RETAINER, INCLUDES WELD NUT.

Снято с производства

REAR STEEL PLATE ON TOP OF COVER.

Снято с производства

1'' X 2'' VELCRO STRIP, INCLUDED IN 10B691, 10B699 & 14A280 ASY.S

Снято с производства

BRACKET - BATTERY BLOWER SUPPORT, INCLUDES (2) WELD STUDS.

Снято с производства

BATTERY CLAMP TOOL KIT. CONTAINS 2 TOOLS & 18 CLAMPS

Снято с производства

UPPER BRACKET CLAMP, MID-TRAY, 370MM X 25MM.

Снято с производства

BLOWER MOTOR MOUNTING BEHIND THE FIRST 7 BATTERIES.

Снято с производства

HIGH VOLTAGE CONTROL

RECTANGULAR, MOUNTS AROUND XL5Z-10B709-BA. ABOVE THE MAIN BATTERY MODULE.

Снято с производства

ATTACHES BLOWER BRACKET (10A710-AA) TO BATTERY TRAY (10732-AA).

Снято с производства

BATTERY BRACKET HOLD DOWN CLAMP, MOUNTS TO BLOWER ASSEMBLIES (10A705-AA).

Снято с производства

BATTERY BRACKET HOLD DOWN. 2 MOUNT AT REAR OF MODULE, 2 AT THE FRONT.

Снято с производства

BATTERY BRACKET HOLD DOWN. ATTACHES TO BLOWER BRACKET (10A710-DA) & MAIN BATTERY TRAY (10732-AA).

Снято с производства

BATTERY BRACKET MOUNTING AT THE FRONT OF THE BATTERY MODULE.

Снято с производства

BATTERY MODULE TEMP SENSORS

Снято с производства

BATTERY PACK REBUILD KIT, USED WHEN REPLACING BATTERIES (BXE-203)

BATTERY TRAY CENTERING PIN.

Снято с производства

BRACKET MOUNTING TO 10A705-CB.

Снято с производства

BRACKET MOUNTS TO BLOWER ON BATTERY TRAY. ATTACHES TO 10B709 BLOWER.

Снято с производства

COMPONENT OF #XL58-10B691-A*.

Снято с производства

COMPONENT OF #XL58-10B691-A*.

Снято с производства

COMPONENT OF #XL58-10B694-A*.

Снято с производства

COMPONENT OF #XL58-10B694-A*. ORANGE.

Снято с производства

KIT - BATTERY HOLD DOWN, CLAMP AND 2 BRACKETS.

Снято с производства

MID-MODULE SPACER. MOUNTS BEHIND BATTERY #13, IN FRONT OF #'S 10, 24, & 23.

Снято с производства

MID-MODULE SPACER. MOUNTS IN FRONT OF BATTERY #12, NEXT TO # 15.

Снято с производства

MOUNTS ABOVE BLOWER ASY. ATTACHES TO MAIN BATTERY TRAY (10732-AA).

Снято с производства

MOUNTS AT THE FRONT AND ABOVE THE MAIN BATTERY MODULE.

Снято с производства

MOUNTS FORE OF THE BLOWER ASY.

Снято с производства

MOUNTS TO THE BLOWER ASY. AT THE FRONT OF THE BATTERY MODULE.

Снято с производства

OBSERVER INDEPENDENT

Снято с производства

SUPPORT TRAYS, 25 NEEDED, FITS WITHIN XL5Z-10732-AA.

Снято с производства

TEMP INDICATOR MODULE FOR BATTERY PACK. MOUNTS TO BATTERY HOLD DOWN (10A705-CB).

Снято с производства

WIRING TO BATTERY TEMPERATURE SENSORS, COOL AND VENT BLOWER RELAY, BATTERY CONTROL MODULES AND ''14290'' CONNECTIONS.

WIRING ASY FOR THE BATTERY COOLING FAN.

Снято с производства

AUXILIARY BATTERY TRAY

AUXILIARY BATTERY TRAY (CLAMP)

AUXILIARY BATTERY TRAY (BRACKET - BATTERY HOLD DOWN)

Снято с производства

BATTERY TRAY SEAL FOR COVER, FITS OUTSIDE OF TRAY ASSEMBLY.

Снято с производства

COMPONENT OF THE MAIN BATTERY TRAY BRACKET

Снято с производства

HIGH VOLTAGE CONTROL

Снято с производства

WIRING ASY FOR THE BATTERY COOLING FAN.

TRAY

CLAMP

SCREW/WASHER

BATTERY HEATER

WIRING ASY.

Снято с производства

TRAY

CLAMP

SCREW/WSHR

HEAT SHIELD

Снято с производства

FRONT MAIN BATTERY TRAY SUPPORT BRACKET.

Снято с производства

CENTER MAIN BATTERY TRAY SUPPORT BRACKET.

Снято с производства

REAR MAIN BATTERY TRAY SUPPORT BRACKET.

Снято с производства

BATTERY WARNING DECAL; LOCATED INSIDE OF COVER, OUTSIDE OF TRAY, TRI-LINGUAL.

Снято с производства

BATTERY WARNING DECAL; LOCATED INSIDE OF COVER, OUTSIDE OF TRAY.

Снято с производства

BATTERY WARNING DECALS

Снято с производства

BATTERY COVER PLATE, MAIN BATTERY TRAY ASY. COVER.

Снято с производства

BATTERY COVER PLATE, MAIN BATTERY TRAY ASY. COVER.

Снято с производства

BRACKET MOUNTING TO 10A705-CB. (RIVET)

BRACKET MOUNTS TO BLOWER ON BATTERY TRAY. ATTACHES TO 10B709 BLOWER. (1.0 HEX NUT)

BRACKET MOUNTS TO BLOWER ON BATTERY TRAY. ATTACHES TO 10B709 BLOWER. (M4 X 12 HEX SCREW)

Снято с производства

KIT - BATTERY HOLD DOWN, CLAMP AND 2 BRACKETS. (HEX BOLT)

MOUNTS ABOVE BLOWER ASY. ATTACHES TO MAIN BATTERY TRAY (10732-AA). (HEX BOLT)

MOUNTS FORE OF THE BLOWER ASY. (HEX BOLT)

MOUNTS TO THE BLOWER ASY. AT THE FRONT OF THE BATTERY MODULE. (HEX NUT)

MOUNTS TO THE BLOWER ASY. AT THE FRONT OF THE BATTERY MODULE. (HEX BOLT)

AUXILIARY BATTERY TRAY (SCREW/WASHER)

BATTERY COVER PLATE, MAIN BATTERY TRAY ASY. COVER. (HEX BOLT)

Снято с производства

ATTACHES BLOWER BRACKET (10A710-AA) TO BATTERY TRAY (10732-AA). (HEX BOLT)

BATTERY BRACKET HOLD DOWN CLAMP, MOUNTS TO BLOWER ASSEMBLIES (10A705-AA). (HEX BOLT)

BATTERY BRACKET HOLD DOWN. 2 MOUNT AT REAR OF MODULE, 2 AT THE FRONT. (HEX BOLT)

BATTERY BRACKET HOLD DOWN. 2 MOUNT AT REAR OF MODULE, 2 AT THE FRONT. (U NUT)

Снято с производства

BATTERY BRACKET HOLD DOWN. 2 MOUNT AT REAR OF MODULE, 2 AT THE FRONT. (RIVET)

BATTERY BRACKET HOLD DOWN. ATTACHES TO BLOWER BRACKET (10A710-DA) & MAIN BATTERY TRAY (10732-AA). (HEX BOLT)

BATTERY BRACKET HOLD DOWN. ATTACHES TO BLOWER BRACKET (10A710-DA) & MAIN BATTERY TRAY (10732-AA). (U NUT)

Снято с производства

BATTERY BRACKET MOUNTING AT THE FRONT OF THE BATTERY MODULE. (HEX BOLT)

BRACKET MOUNTING TO 10A705-CB. (HEX SCREW AND WASHER)
