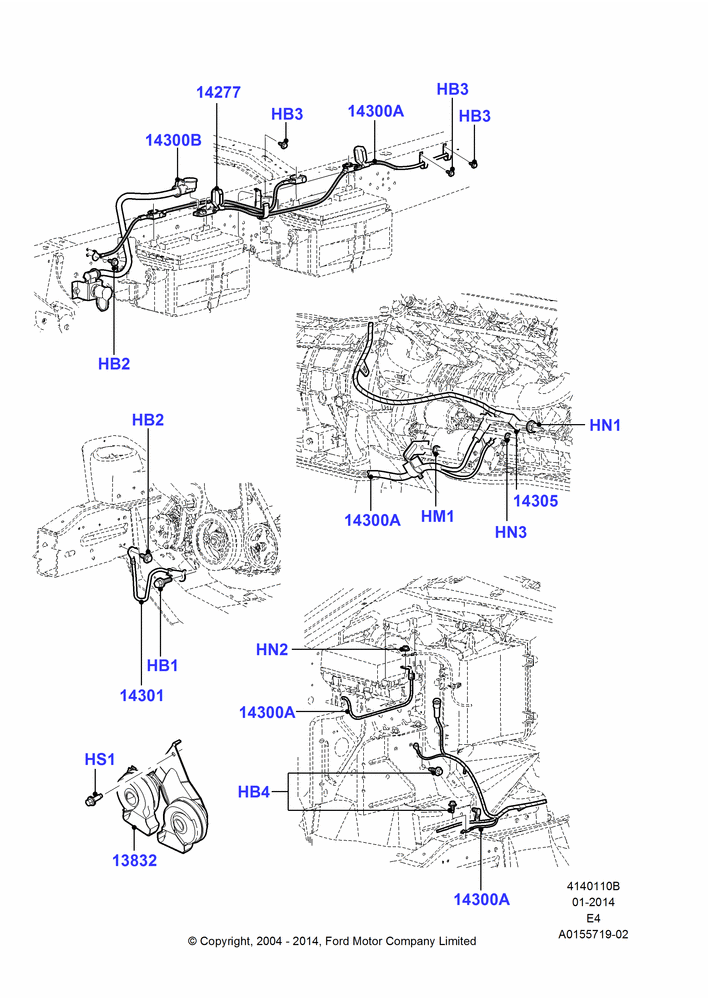

Провода АКБ и звуковой сигнал, With Diesel Engines; 02.08.2004

Includes Bracket

Не поставляется отдельно

Dual Note. Low/High Pitch

Не поставляется отдельно

Includes Bracket

Не поставляется отдельно

Positive. Red

Black. Negative

5/16"- 18 Stainless Steel Nut Used For Cable Battery Terminal Retention. 5/16"- 18 X 1 9/16" Stainless Steel Bolt. Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables. Positive/Negative Battery Terminal Clamp Bolts Not Serviced Separately

Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables. Positive/Negative Battery Terminal Clamp Bolts Not Serviced Separately

Снято с производства

Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables. Positive/Negative Battery Terminal Clamp Bolts Not Serviced Separately

5/16"- 18 Stainless Steel Nut Used For Cable Battery Terminal Retention. 5/16"- 18 X 1 9/16" Stainless Steel Bolt. Complete Assy - Includes Positive And Negative Cables, Starter Motor And Relay Cables. Positive/Negative Battery Terminal Clamp Bolts Not Serviced Separately

From Battery Positive Post Terminals To Heavy Duty Terminal Stud For Jump Start Accessibility. Jump Start Cable Assembly. Located Near Battery Trays On Frame Rail

Ground Cable, From Engine Block To Frame

Ground Cable, From Engine Block To Frame

Only Serviced In 14300 Cable Asy. W301557 Engine B+ Stud, 4C2Z-14305-DA Cable Not Used After 11/29/04-Cable Incorporated Into 12B637 Harness

From Starter Motor B+ Stud To Engine Positive Junction Stud, Located By Rear Of LH Valve Cover. For Availability And Current Pricing, Contact www.vpartsinc.com (877-846-8243), Or D2Dlink@OEConnection.com. Junction Block Stud Part # W301557. NOTE: From Engine B+ Stud To Primary Alternator B+/Regulator Connections Part Of Engine 12B637 Harness

Снято с производства

M12 x 20MM

Снято с производства

M10 X 20MM

M8X1.25X16

M6 X 16 HEX

M8 Hex. Nut. Nut & Washer - Hex

M10 x 1.5MM

M6

M6

M8 - 1.25 x 25. Horn
